CTRL-TANK

EQUIPMENT FOR THE AUTOMATED AND SCHEDULED MANAGEMENT OF ADJUVANTS ADDITIONS AND OXYGENATION FOR TANKS OF ANY SIZE

During the harvest, a priority for wineries is to precisely manage the timing and methods of necessary interventions to complete the alcoholic fermentation (AF) and achieve the desired technical and qualitative results.

CTRL-TANK customizes and manages the addition of nutrients, oxygen and coadjuvants at each stage in a simple, precise and efficient way.

CTRL-TANK can dose up to four different products into 6, 12, or 18 tanks in manual or automatic mode, with programmable dosing schedules.

Moreover, this equipment can dose oxygen:

during fermentation (simultaneously with adjuvants);
after fermentation (micro-oxygenation).

ADVANTAGES

Precision in dosing any product, if dissolved
Oxygen dosing during and after fermentation (macro/micro)
Reduction in fermentation time
Timed dosing of adjuvants
Adjustable injection speed to prevent foam formation and overflow

OPERATION

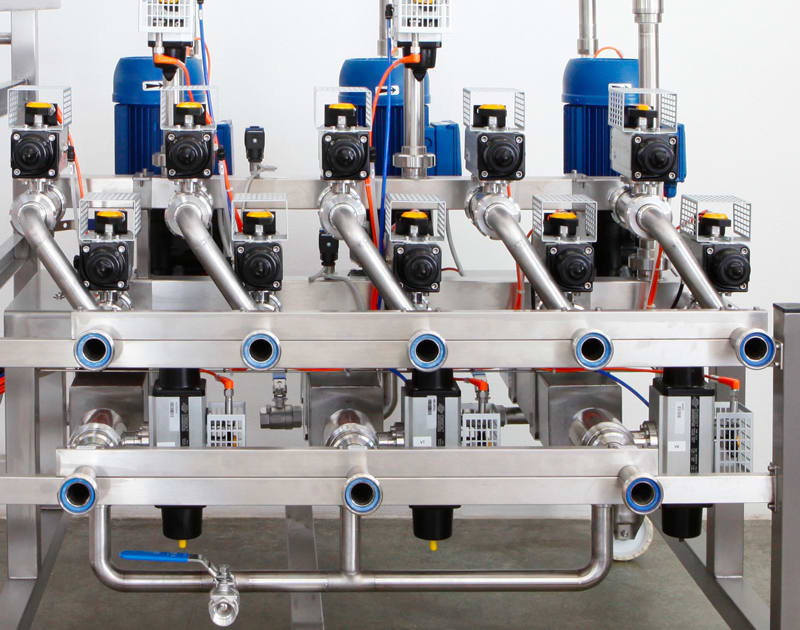

Connect the PRODUCT FEEDS to mixing tubs* containing the diluted products.

Compressed air
Mains water
Electrical power
Oxygen (if used)

Connect CTRL-TANK to the tanks where the additions are to be made.

The program is simple and intuitive, just follow these steps:

Set the number of tanks and the hectoliters of must in each tank
Select the product/pump to activate
Set the g/hL for the product(s) and dilution, or select a previously saved dosing protocol
Set the date and time to start the treatment.

* Mixing tubs can be connected and managed via CTRL-TANK.
